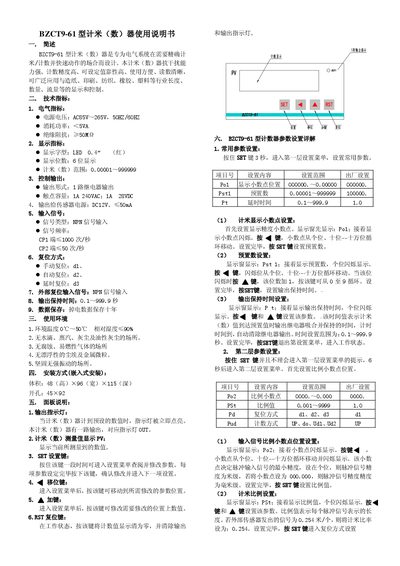

BZCT9-61 type meter (number) meter instruction manual, the product has strong anti-interference ability, high counting accuracy, high reliability of set value, easy to use and clear reading, can be widely used in papermaking, printing, textile, rubber, plastic and other industries length, quantity, flow and other display and control.
The BZCT9-61 meter counter is designed for electrical systems that require accurate counting and fast response. It offers strong anti‑interference capability, high counting precision, clear LED display, and flexible output options, making it suitable for industries such as paper, printing, textile, rubber, and plastics.
The manual covers technical specifications, environmental limits, mounting dimensions, panel functions, parameter settings, terminal connections, and wiring guidelines. It also explains reset methods, output hold time, and data retention features to ensure reliable operation. This manual is written in Chinese.
| Power supply voltage | AC85V‑265V, 50Hz/60Hz |
|---|---|
| Power consumption | <5 W |
| Insulation resistance | 50 MΩ |
| Display type | LED 0.4" red |
| Display digits | 6‑digit |
| Counting range | 0.00001‑999999 |
| Output type | 1‑relay output |
| Contact capacity | 1 A 240 VAC (NO), 1 A 28 VDC (NC) |
| Sensor power output | DC12 V, 50 mA |
| Input signal type | NPN |
| Input frequency CP1 | 1000 pulses/s |
| Input frequency CP2 | 50 pulses/s |
| Output hold time | 0.1‑999.9 s |
| Data retention after power loss | 10 years |
| Operating temperature | 0 °C‑50 °C |
| Maximum relative humidity | 90 % |
It operates from AC85 V to AC265 V at 50 Hz or 60 Hz.
The device provides one relay output with a normally open contact rated 1 A 240 VAC and a normally closed contact rated 1 A 28 VDC.
