The BZCT9-61 meter is designed for electrical systems that require accurate metering/counting and fast operation. This meter has strong anti-interference ability, high counting accuracy, high reliability of preset values, easy to use, and clear reading. It can be widely used in industries such as papermaking, printing, textile, rubber, and plastics for length, quantity, flow, and other displays and controls.
The BZCT9-61 meter is designed for precise length, quantity, and flow measurement in industries such as paper, printing, textile, rubber, and plastic. It offers strong anti‑interference capability, high counting accuracy, clear LED display, and a relay output for control.

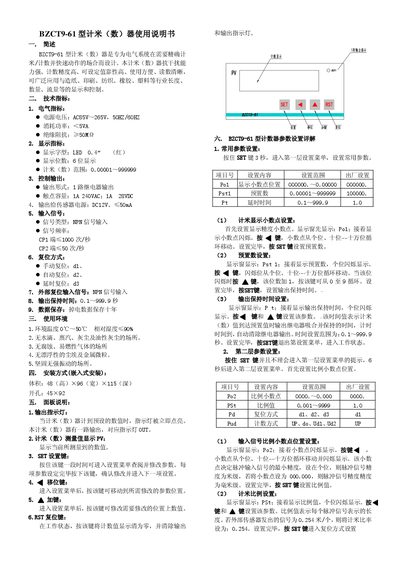

The manual covers technical specifications, environmental limits, installation dimensions, panel functions, parameter configuration, reset modes, wiring diagrams, and wiring requirements to ensure correct setup and reliable operation. This manual is written in Chinese.
| Power supply voltage | AC85V‑265V, 50Hz/60Hz |
|---|---|
| Power consumption | <5 W |
| Insulation resistance | 50 MΩ |
| Display type | LED 0.4" red |
| Display digits | 6‑digit |
| Counting range | 0.00001‑999999 |
| Output type | 1‑relay output |
| Contact capacity | 1 A 240 VAC, 1 A 28 VDC |
| Sensor power output | DC12 V, 50 mA |
| Input signal type | NPN |
| High‑frequency input frequency | 1000 pulses/s |
| Low‑frequency input frequency | 50 pulses/s |
| Output hold time | 0.1‑999.9 s |
| Data retention after power loss | 10 years |
| Operating temperature | 0 °C‑50 °C |
| Maximum relative humidity | ≤90 % RH |
| Dimensions (H × W × D) | 48 mm × 96 mm × 115 mm |
| Mounting opening size | 45 mm × 92 mm |
It operates from an AC supply of 85 V to 265 V at either 50 Hz or 60 Hz.
The device provides one relay output with a normally‑open contact rated at 1 A 240 VAC and a normally‑closed contact rated at 1 A 28 VDC.
