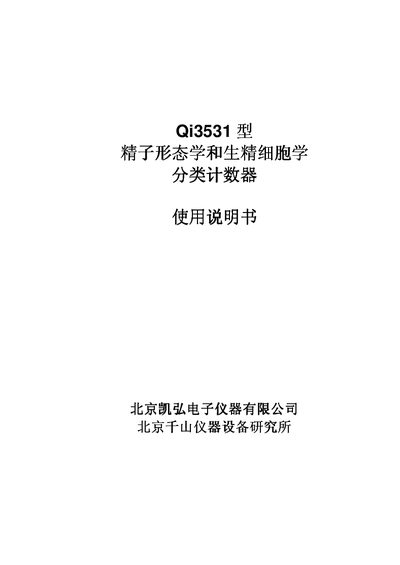

This document is about Qi3531 CELL COUNTER. It introduces the product features and functions.
The Qi3531 Classification Counter is used to count and classify sperm cells and spermatogenic cells. The manual explains how to set the total count, count individual cell types, view percentages, and reset the device for new samples.
The instrument can be powered by AC 220 V (±10%, 50 Hz) or by four AA batteries. It includes details on environmental limits, battery replacement, and precautions to avoid damage, as well as warranty information. This manual is written in Chinese.
| Default total count | 500 |
|---|---|
| Maximum total count setting | 999999 |
| Maximum count per cell type | 9999 |
| AC power input | 220 V ±10% 50 Hz |
| Battery type | 4 × AA 1.5 V |
| Operating temperature range | 0 °C – 40 °C |
| Maximum relative humidity | < 80 % |
| Atmospheric pressure range | 750 mm Hg |
| Warranty period | 1 year |
Press the total‑set key, the current total is displayed, enter the desired number with the numeric keys, then press the total‑set key again to save.
