PT series intelligent regulation module adopts single chip microcomputer design, rail type installation, built-in more than 20 linear, nonlinear input specifications, cooperate with touch screen PC, PLC, or industrial control computer, can form various single machine temperature, humidity, pressure, liquid level, flow control system.
The PT series intelligent regulating module from Xiamen Bote Automation Engineering is a micro‑processor based controller designed for rail‑type installation. It supports a wide range of input types (temperature, humidity, pressure, level, flow) and can be integrated with touch screens, PCs, PLCs or industrial PCs.

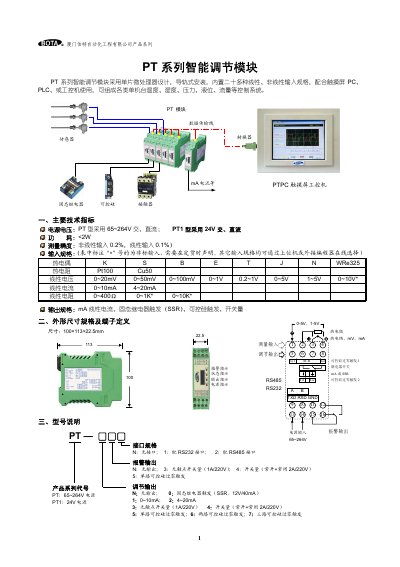

The manual details technical specifications, mechanical dimensions, wiring diagrams, address and baud‑rate configuration, parameter definitions, communication protocol (RS232/RS485) and safety notes, providing all information needed for installation, commissioning and troubleshooting. This manual is written in Chinese.
| Power voltage | 65~264 V AC/DC |
|---|---|
| Measurement accuracy | Non‑linear 0.2 %, Linear 0.1 % |
| Dimensions | 100 × 113 × 22.5 mm |
| Output options | mA linear current, solid‑state relay (SSR), SCR trigger, switch output |
