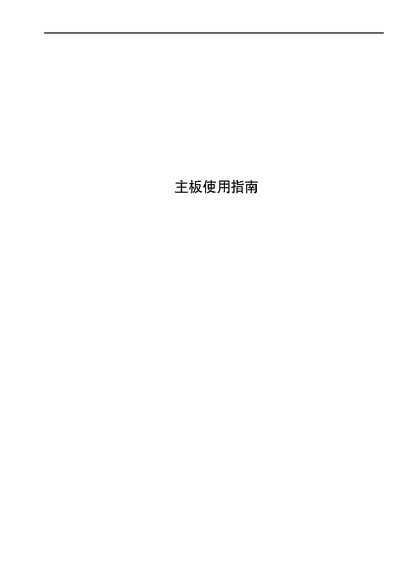

The D8S0GB-NOAL motherboard user manual provides a complete guide to the board’s hardware layout, BIOS settings, and supported components. It includes an introduction to the board’s specifications, such as supported processors, memory types, and expansion slots.
Detailed sections cover connector definitions, power‑on and reset switch wiring, Wake‑On‑LAN configuration, and step‑by‑step instructions for installing the Intel 850 chipset drivers and IDE drivers. The BIOS setup procedure and password management are also described. This manual is written in Chinese.
| Supported CPU | Pentium 4 Socket 423 |
|---|---|
| Chipset | Intel 850 |
| Graphics Slot | AGP 4x/2x |
| Memory Type | PC800 RUMBUS series |
| Maximum RDRAM | 2 GB (two RIMM slots) |
| IDE Devices | Up to 4 IDE devices (PIO and Ultra DMA modes) |
| PCI Slots | 5 |
| USB Ports | 4 (2 reserved) |
| Floppy Interface | Supports 360K/720K/1.2M/1.44M/2.88M |
Power off the system, move the J8C2 jumper from position 1 to position 2 as shown in the manual, then power on the system and press the power‑on button to enter BIOS.
Insert the motherboard driver CD, navigate to the driver folder, and run SETUP.EXE to install the chipset drivers.
