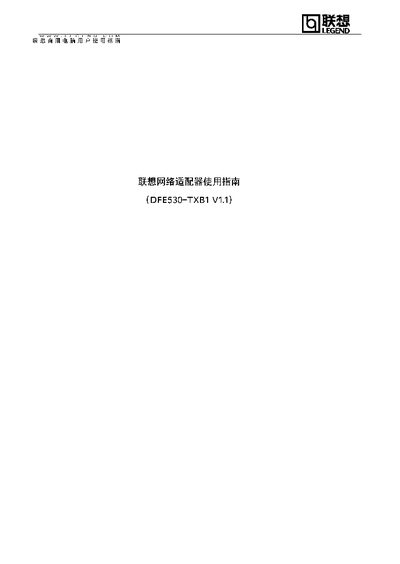

This manual covers the installation and configuration of the Lenovo DFE530-TXB1 PCI Fast Ethernet adapter. It includes hardware setup, driver installation for various operating systems, and power‑management features such as ACPI support.
The document also explains the meaning of the adapter’s LED indicators, network speed options, and duplex modes, helping users verify correct operation and troubleshoot connectivity issues. This manual is written in Japanese.
| Interface Speed | 10/100M |
|---|---|
| Plug & Play | Supported |
| LED Indicator - LINK/ACT | Normal operation |
| LED Indicator - 100M Speed | On when 100M link |
| LED Indicator - 10M Speed | On when 10M link |
| Full Duplex Indicator | Full duplex mode |
| Half Duplex Indicator | Half duplex mode |
| Power Management | ACPI 1.0 support |
