The BZ500W DC motor controller has excitation loss protection function, which ensures safety, reliability, and smooth speed control. It has a DC output voltage of 240V (no-load), operates on AC 220V, accepts input signal voltage of 0-10V, and can handle a maximum load of 500W.
The BZ500W DC motor speed governor provides excitation loss protection to prevent motor damage even if excitation is lost. It includes specifications such as output voltage, input signal range, and maximum load.

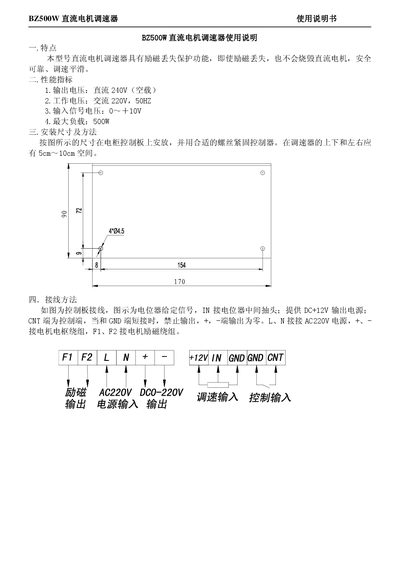

The manual details installation dimensions, mounting guidelines, and wiring connections, including how to connect the potentiometer, control terminals, and power inputs for proper operation. This manual is written in Chinese.
| Output voltage (no load) | DC 240V |
|---|---|
| Working voltage | AC 220V, 50 Hz |
| Input signal voltage | 0‑10 V |
| Maximum load | 500 W |
The output voltage is DC 240 V under no‑load conditions.
The controller accepts an input signal voltage from 0 to 10 V.
It can handle a maximum load of 500 W.
