This is a manual for the operation of a dispensing machine, which introduces the main types of dispensing machines, the applicable liquids, and the application fields.

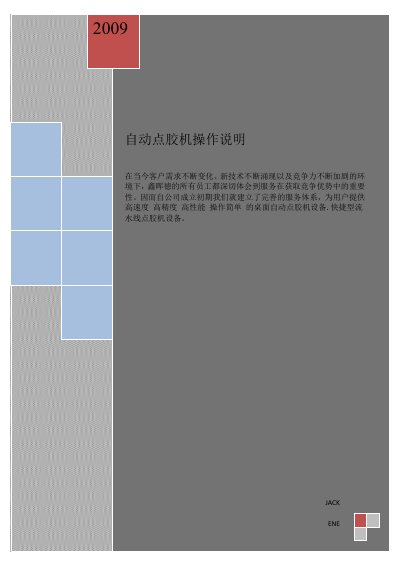

This manual describes the ENE 300 automatic dispensing system, including its hardware components, software functions and recommended usage scenarios. It covers system features, technical parameters, accessory lists and detailed operation steps for both novice and experienced users.
The guide also includes instructions for system installation, parameter configuration, teach‑pendant programming, offline panel operation and a comprehensive troubleshooting section to help resolve common issues such as firmware upgrades, I/O errors and mechanical mis‑alignments. This manual is written in Chinese.
| Pulse frequency (max) | 7.5 MHz |
|---|---|
| Power supply | 24 V DC (optional 220 V AC adapter) |
| Dedicated I/O | 4‑axis limit inputs, 4‑axis pulse/direction outputs |
| General I/O | 3 ports (expandable 8 inputs, 24 outputs) |
| Motion control | 3‑D linear, arc interpolation with speed preview |
Select a small needle for low pressure short‑time dispensing, a large needle for higher pressure longer‑time dispensing, and a slanted needle for viscous fluids; special tips are recommended for UV‑curable and conductive adhesives.
Check the I/O wiring for errors, verify that the output ports are correctly connected, and ensure the firmware version matches the loaded configuration file.
Download the correct firmware version, copy it to a USB drive, ensure no filename conflicts with existing files on the MTC 401 card, then use the teach pendant to load the firmware and restart the system.
The slow response often indicates a communication issue between the teach pendant and the MTC 401 card; check the serial cable connections and replace the interface board if necessary.
