EQ1003 is a multi-functional LED strip display control system. It has powerful functions, reliable performance, and simple and quick secondary development. It is mainly used in bus station, bank queue, equipment status display and other occasions where real-time data update is required. The control card has 16-bit standard Chinese character and English character library, and can realize seamless connection with GSM module and single chip microcomputer. It can also be connected to 8 buttons, and users can customize the functions of each button.
The EQ1003 is a multifunction LED strip display controller designed for indoor and outdoor use, supporting single‑color and dual‑color panels with up to 24,576 total pixels. It offers built‑in font libraries, RS232/485 serial communication, GSM/GPRS modules, external key inputs, and a secondary development kit for custom applications.

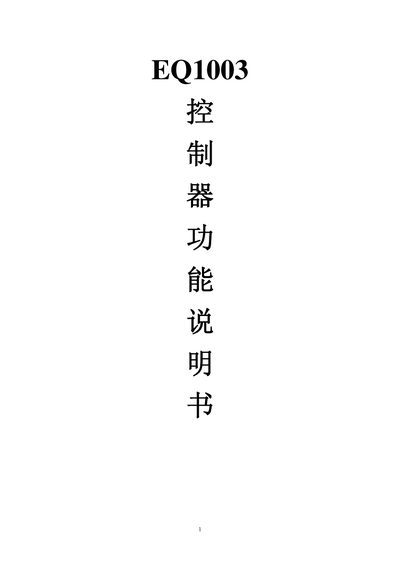

The manual guides users through hardware configuration, including setting the controller address, scan mode, and special functions, as well as creating and editing display programs with text, images, and time/clock elements. It also provides details on wiring, baud‑rate jumper settings, and troubleshooting tips. This manual is written in Chinese.
| Total pixels | 24576 |
|---|---|
| Maximum length | 1536 |
| Maximum height | 64 |
| Scan mode | 116 |
| Serial communication interface | RS232/485 |
| Supported baud rates | 9600, 19200, 57600, 115200 |
| GSM module | Supported |
| RAM development | Supported |
| External keys | Supported |
| Time/date display | Supported |
| Secondary development kit | Provided |
The default password is “168”.
The EQ1003 supports up to 128 control cards.
The controller supports BMP, JPG, and GIF image formats.
Press the “Read Current Card Parameters” button to retrieve and display the current settings.
