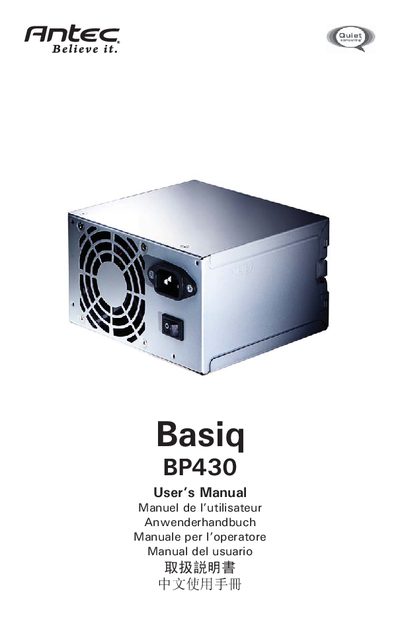

The Basiq BP430 User's Manual is a guide on how to use the Basiq BP430. The manual provides detailed information on the features and characteristics of the Basiq BP430.
The BP430 is an Antec Basiq series power supply that complies with the ATX12V v2.2 standard and features dual 12 V output rails, universal 100‑240 V input, and active PFC for improved power factor. It includes protection circuits such as over‑current (OCP), over‑voltage (OVP) and short‑circuit (SCP) protection.
The manual explains how to safely install the unit, connect the 24‑pin main power connector (or the optional 20‑pin configuration), attach peripheral connectors (SATA, video‑card, optical drive, etc.), and operate the power switch. It also provides customer‑support contact information for the United States and Europe. This manual is written in Japanese.
| Input voltage range | 100‑240 V |
|---|---|
| Protection circuits | OCP, OVP, SCP |
| Power factor correction | Active PFC |
| Output rails | Dual 12 V |
Make sure the power switch is set to the ON (1) position before powering the computer; normally you do not need to switch it OFF during regular use.
The BP430 includes over‑current (OCP), over‑voltage (OVP) and short‑circuit (SCP) protection circuits.
It accepts a universal input voltage of 100‑240 V, so no voltage‑setting switches are required.
