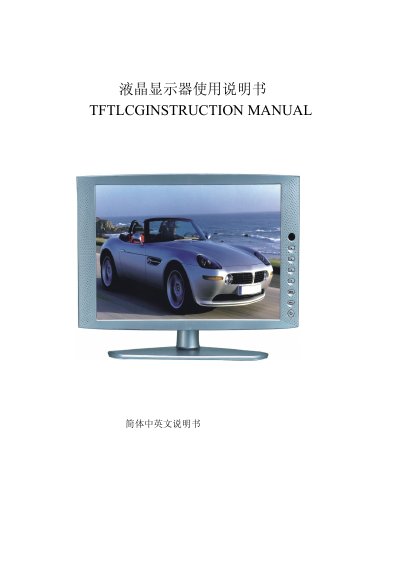

This document is an instruction manual for a TFT LCD display, including safety guidelines, accessories, panel controls and terminal interfaces, connections with various signals, basic adjustments of the on-screen display, PC display modes, VGA connection modes, remote control instructions, product specifications, and troubleshooting.
This manual covers safety precautions, included accessories, panel controls and terminal interfaces, and detailed instructions for connecting the LCD monitor to computers, AV devices and TV signals. It also explains how to adjust the on‑screen display (OSD) for various modes such as PC, VGA, AV, S‑Video and TV.
The document lists the product specifications, power requirements, and provides a fault‑repair section with common problem checks and solutions. This manual is written in Chinese.
| Brightness | 400 cd/m² |
|---|---|
| Backlight Lifetime | 50,000 hours |
| Viewing Angle | H: 150°, V: 135° |
| Power Supply | DC 12 V, <45 W |
| Resolution (Best) | 1280 × 768 @ 60 Hz |
| Audio Output Power | 2 W × 2 |
