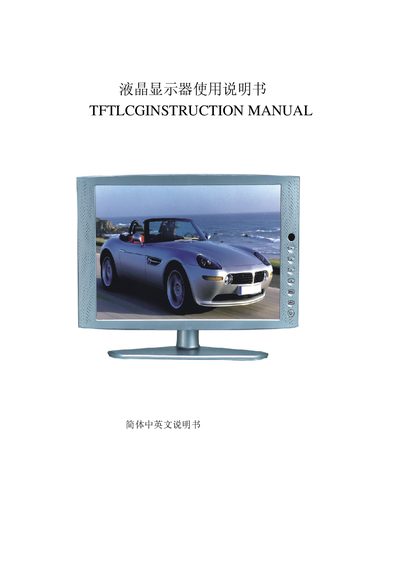

This document is an instruction manual for a TFT LCD monitor, which introduces the safety guidelines, accessories, panel controls and terminal interfaces, and the connection of the LCD TV to various signals.
The manual describes the LCD's power requirements, input connections (VGA, S‑Video, CVBS/AV) and how to select the appropriate source. It also explains the on‑screen‑display (OSD) menu structure, including brightness, contrast, and picture‑size settings.
Additional sections cover resolution options, supported refresh rates, and safety information such as voltage limits and power consumption. The document includes wiring diagrams and step‑by‑step instructions for installing and configuring the display.
| Supported Resolutions | 640×480, 800×600, 1024×768, 1280×1024, 1440×900 |
|---|---|
| Power Consumption | < 45 W |
| Refresh Rate Range | 30–70 kHz (60–75 Hz) |
The display can operate at 640×480, 800×600, 1024×768, 1280×1024 and 1440×900.
