The ED07 E/P pressure regulator is a proportioning valve that is controlled by an electrical signal. The valve has a rated flow rate of Qn 1300 l/min, a working voltage of DC 24 V, and a maximum working pressure of 21 bar.

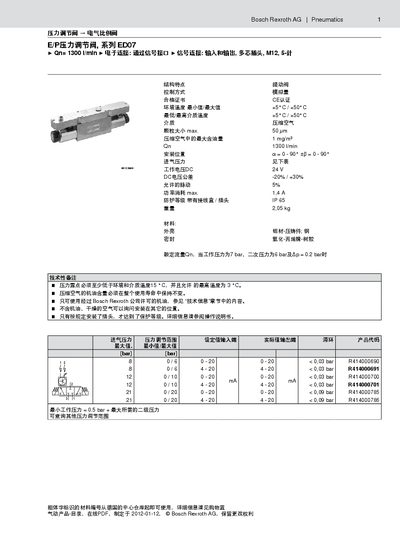

This manual describes the E/P pressure regulator valve of the ED07 series from Bosch Rexroth. It includes key features, control methods, temperature limits, flow characteristics, and wiring diagrams for proper installation and operation.
Technical data such as rated flow, supply voltage, current, IP rating, weight, and operating temperature ranges are listed, along with pin assignments and configuration settings needed to achieve the desired pressure control. This manual is written in Japanese.
| Rated flow (Qn) | 1300 |
|---|
The rated flow (Qn) is 1300 (unit unspecified).
