BZCS7-61 type line speed meter is a multi-function meter with 6-digit meter display and 4-digit line speed display, 1-way meter relay output, strong anti-interference ability, high counting accuracy, high reliability of set value, easy to use and clear reading.
The BZCS7-61 line speed meter combines a 6‑digit single‑stage counter with a line‑speed display. It offers dual display of count and speed, a relay output, strong anti‑interference capability, high counting accuracy, and clear readout. The device is used in paper, printing, textile, rubber, and plastic industries for length, quantity, and flow control.

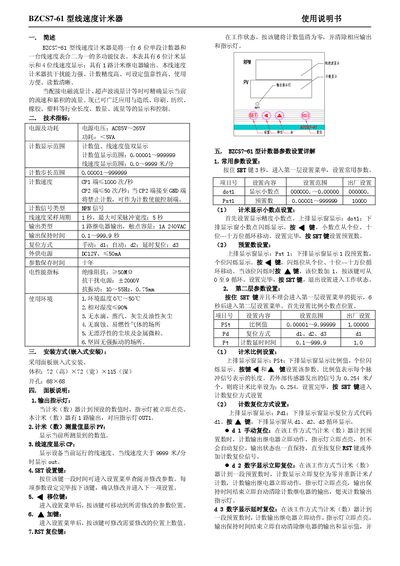

The manual describes installation (panel‑mount), wiring of signal, power, and relay terminals, and detailed parameter settings accessed via the SET key. It covers preset count, decimal point positioning, output hold time, reset modes, and environmental requirements such as temperature and humidity limits. This manual is written in Chinese.
| Power supply voltage | AC85V‑265V |
|---|---|
| Counting display range | 0.00001‑999999 |
| Line speed display range | 0.0‑9999 m/min |
| Counting step range | 0.00001‑999999 |
| Counting speed (CP1) | 1000 counts/s |
| Counting speed (CP2) | 50 counts/s |
| Relay output rating | 1 A 240 V AC |
| External power input | DC12 V ≈ 50 mA |
| Insulation resistance | 50 MΩ |
| Operating temperature | 0 °C‑50 °C |
| Maximum relative humidity | ≤ 90 % |
Press the designated key while the device is in operating mode to clear the count and associated outputs and indicator lights.
Enter the settings menu by holding the SET key for 3 seconds, then use the SET key to adjust the preset number.
The meter operates on an AC supply ranging from 85 V to 265 V.
