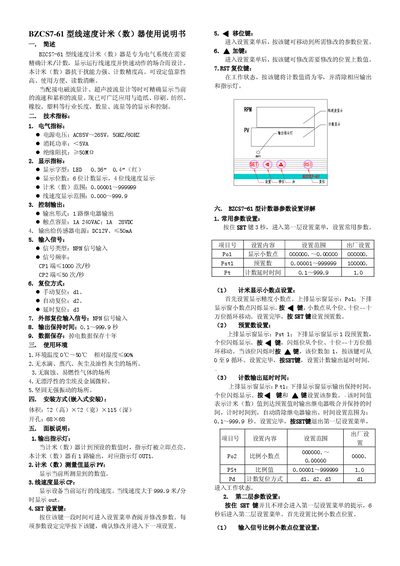

BZCS7-61 type line speed meter (number) meter instruction manual, the product uses LED display, has the function of counting, displaying line speed, output control, widely used in the paper, printing, textile, rubber, plastic and other industries length, quantity, flow and other display and control.
The BZCS7-61 linear speed counter is designed for electrical systems that require precise counting, speed display, and fast action. It offers strong anti‑interference ability, high counting accuracy, clear readout, and easy operation, and can be paired with electromagnetic or ultrasonic flow meters.
The manual covers technical specifications, environmental limits, embedded installation dimensions, panel functions, parameter settings, and detailed wiring instructions, including signal input, relay output, external reset, and power supply connections. This manual is written in Chinese.
| Power supply voltage | AC85V–265V, 50/60 Hz |
|---|---|
| Power consumption | <5 VA |
| Insulation resistance | ≥50 MΩ |
| Display type | LED 0.36" 0.4" (red) |
| Display digits | 6‑digit count, 4‑digit speed |
| Counting range | 0.00001–999999 |
| Speed range | 0.000–999.9 m/min |
| Relay output type | 1‑channel relay |
| Contact capacity | 1 A 240 VAC / 1 A 28 VDC |
| Output hold time | 0.1–999.9 s |
| Data retention after power loss | 10 years |
| Operating temperature | 0 °C – 50 °C |
The device operates from 0 °C to 50 °C.
Press the RST key to clear the count and reset the output.
It accepts an NPN signal input.
