AV-PC power controller is an indispensable device for conference presentation and command control systems. It has switch quantity control, can be cascaded to 16 units, the device surface has green power indicator and red relay switch indicator light, manual and central control simultaneous management function, convenient wiring, power off last state save function and other features.
The Plexus AV series power supply controller provides centralized power management, timing, delay switching and programmable control for conference and presentation systems. It supports both program‑controlled and manual modes, allowing independent or combined control of up to 16 devices via 8‑channel relays.

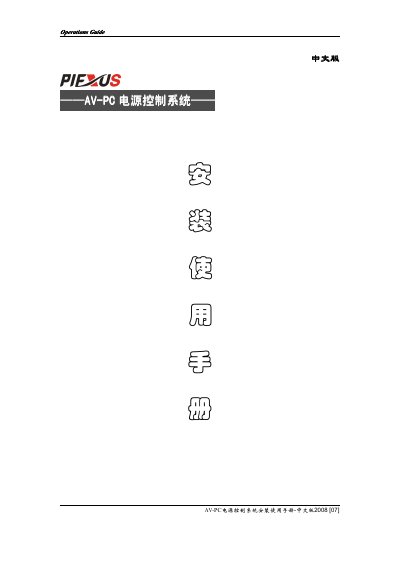

The manual details physical features such as an 8‑relay chassis, 30 A @ 277 V single‑channel rating, 8‑bit local inputs, dimensions of 38.1 cm × 20.32 cm × 6.35 cm, and a weight of 7.2 lb. Communication uses a 9600 baud rate, 8‑bit data, no parity, and a 4‑bit address set by dip switches. This manual is written in Chinese.
| Relay Channels | 8 independent relays |
|---|---|
| Single‑Channel Power Rating | 30 A @ 277 V AC |
| Local Inputs | 8‑bit |
| Weight | 7.2 lb / 3.3 kg |
| Baud Rate | 9600 bps |
| Data Format | 8 bits, no parity, 1 stop bit |
| Maximum Cascadable Devices | 16 |
Up to 16 devices can be linked in a cascade using the 4‑bit address.
The controller communicates at 9600 bps.
It provides 8 independent relay channels.
