MS-1 is a networked information server that supports various paging functions within the Vocia® system, including voice playback, broadcast scheduling, VoIP paging connections, logging, and remote control. It also supports internal paging and communication between zones via TCP/IP.
The MS-1 is a networked information server designed for Biamp Vocia systems, providing voice playback, broadcast scheduling, VoIP paging, log recording, and remote control. It functions as the central storage for system settings and supports plug‑and‑play installation with Ethernet, CobraNet, and TCP/IP protocols.

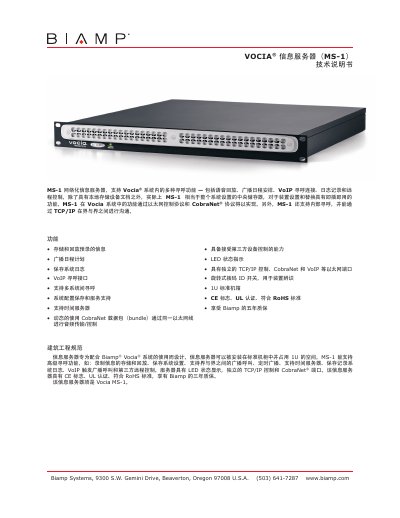

The device fits in a standard 1U rack, includes LED status indicators, a rotary ID switch, and offers multiple network ports (TCP/IP, CobraNet, VoIP). It meets CE, UL, and RoHS certifications and is covered by Biamp's warranty. This manual is written in Chinese.
| Connection | RJ45 shielded Ethernet / PoE (CAT5, CAT5e, CAT6, CAT7) |
|---|---|
| Weight | 12 lb (5.4 kg) |
| Power consumption | < 350 W (100~240VAC 50/60Hz) |
| Operating temperature range | 32‑113 °F (0‑45 °C) |
| Certifications | EU 2002/95/EC, RoHS, CE, UL |
| Warranty | Five‑year warranty from Biamp |
The MS-1 occupies a standard 1U rack space.
It operates on 100‑240 VAC, 50/60 Hz and consumes less than 350 W.
