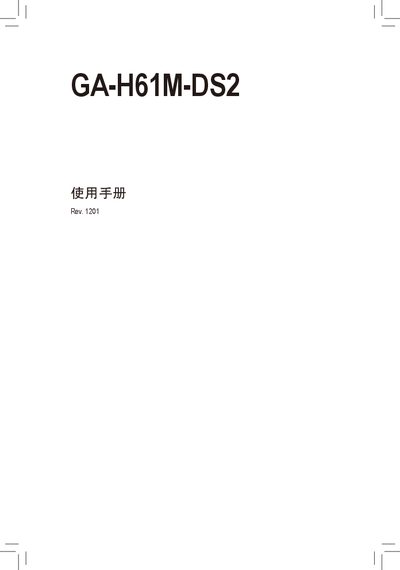

GA-H61M-DS2 Motherboard User Manual, introduces the hardware installation and BIOS program settings of the motherboard
This manual guides users through the safe installation of the GA-H61M-DS2 motherboard, covering pre‑installation precautions, connector layout, and component handling to avoid damage. Detailed instructions are provided for mounting the CPU, memory modules, and expansion cards, as well as connecting power and peripheral cables.
The document also lists the motherboard’s technical specifications, BIOS setup options, driver installation procedures, and the warranty and service card details for Gigabyte products sold in mainland China. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory type | DDR3 1333/1066/800 MHz, non‑ECC, dual‑channel |
| Chipset | Intel H61 |
| PCI Express slots | 1 × x16, 2 × x1 (PCIe 2.0 compatible) |
| SATA ports | 4 × 3 Gb/s SATA connectors |
The GA-H61M-DS2 uses an LGA1155 socket for Intel processors.
It has two DDR3 DIMM slots that can support up to 16 GB of memory.
Gigabyte offers a three‑year warranty for the GA-H61M-DS2 motherboard purchased in mainland China.
