GA-H61M-DS2 is a Gigabyte motherboard with various configurations and features, including installation of CPU, memory modules, interface cards, as well as BIOS configuration and driver installation.

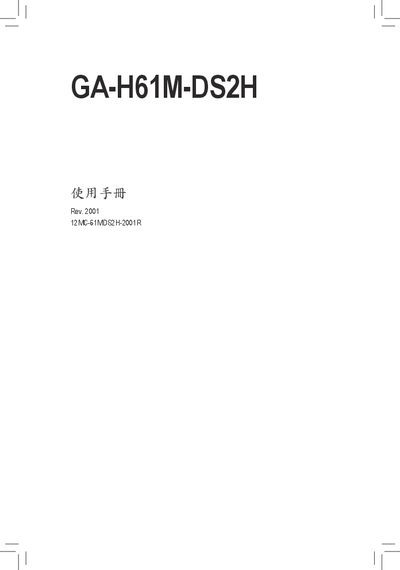

This manual provides detailed instructions for installing the GA-H61M-DS2H motherboard, including hardware preparation, CPU and memory installation, and connector setup. Safety warnings and anti‑static precautions are highlighted to protect both the user and the equipment.
The guide also describes BIOS configuration, power management options, and lists all supported components such as CPUs, memory modules, USB ports, SATA connectors, and expansion slots. Warranty terms and regulatory compliance information are included at the end of the document. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Memory Slots | 2 x DDR3 DIMM, up to 16 GB |
| Memory Speed | DDR3 1333/1066/1800 MHz |
| USB Ports | 10 x USB 2.0 (6 rear, 4 via internal headers) |
| SATA Connectors | 4 x SATA 3 Gb/s |
| LAN Controller | Realtek/Atheros GbE LAN |
| Audio Codec | Realtek/VIA HD Audio |
| Power Connectors | 1 x 24‑pin ATX, 1 x 4‑pin ATX 12 V |
It uses an LGA1155 socket.
The board supports up to 10 USB 2.0 ports (6 on the rear panel and 4 via internal headers).
