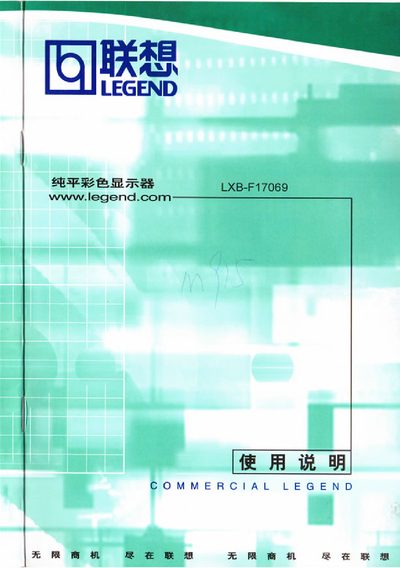

This manual explains how to safely install and use the Lenovo LXB-F17069 flat‑screen color display. It includes safety warnings such as never opening the rear cover, keeping the unit away from water, and ensuring proper ventilation. Power can be supplied from 100‑120 V AC or 200‑240 V AC sources and the display complies with CE, FCC and Energy Star requirements.
Installation steps cover mounting the swivel base, connecting the 15‑pin signal cable to a computer graphics card, and attaching the power cord. The front‑panel controls and OSD menu allow adjustment of brightness, contrast, geometry, and other picture settings. Appendices provide product specifications, factory preset values, signal pinout diagrams, and a view of the display’s exterior. This manual is written in Chinese.
| Power voltage range | 100‑120 V AC or 200‑240 V AC |
|---|---|
| Display resolution | 1024 × 768 |
| Energy Star certification | Yes |
| CE certification | Yes |
| FCC compliance | Yes |
Connect the 15‑pin plug to the computer’s video card output and lock the screws as shown in the diagram.
Change the direction of the receiver, increase the distance between the display and the affected device, use a different power outlet, or consult a qualified technician.
Use the OSD menu’s Geometry controls to adjust screen size, horizontal/vertical position, scaling, and distortion correction.
