The RI-200 Pipe Inspection Camera is a 3-part modular system that provides a portable, upgradable and flexible inspection instrument for plumbing professionals. This camera system is perfect for pipes with diameters ranging from 3 to 8 inches and can push the camera up to 200 feet (60 meters) along a typical pipe. This inspection camera has been proven to save a considerable amount of time and is an excellent inspection tool. The system’s ability to show customers where their problem is coming from can significantly increase your company’s profits.
The RI-200 is a modular, portable pipe inspection system consisting of three main parts: a control module with a 10.4‑inch LCD, a lightweight aluminum cable‑reel chassis, and an automatically level‑adjusted color camera. The system is designed for 3‑to‑8‑inch diameter pipes and can push the camera up to 200 ft (60 m). It includes a DVD recorder, optional text writer, and a 512 Hz probe for precise positioning.

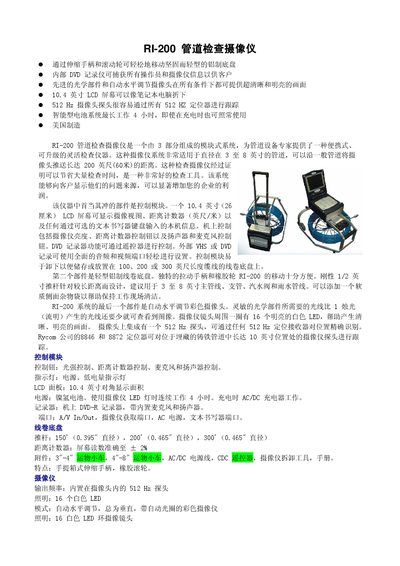

The control module provides brightness, distance counter, microphone and speaker controls, and a DVD‑R recorder. The cable‑reel chassis features a telescoping handle and rubber wheels for easy movement, with interchangeable reels of 150", 200" or 300" length. The camera head contains 16 white LEDs and a 512 Hz probe, delivering bright, clear images even in low light. Power is supplied by a Ni‑Cd battery lasting up to 4 hours, with AC/DC charging capability. This manual is written in Chinese.
| LCD screen size | 10.4 inch diagonal |
|---|---|
| Battery runtime | up to 4 hours continuous operation |
| Camera probe frequency | 512 Hz |
| Cable reel lengths | 150", 200", 300" |
The battery can operate for up to 4 hours continuously, even while charging.
The LCD screen measures 10.4 inches diagonally.
Reels are available in 150", 200" and 300" lengths.
