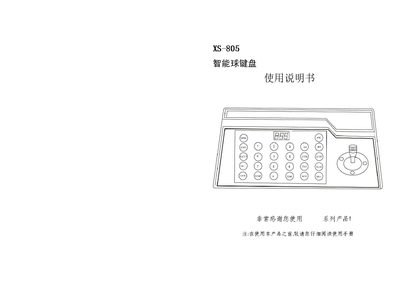

The XS-805 intelligent ball keyboard provides centralized control of multiple PTZ ball cameras. It supports RS‑485 communication, allowing up to 255 cameras to be managed with a maximum distance of 1.2 km. The device operates on a 12 V DC power supply and draws up to 500 mA.
The manual covers safety precautions, front‑panel functions, DIP‑switch configuration for baud‑rate selection, and detailed command descriptions for camera movement, zoom, focus, preset points, and surveillance routines. This manual is written in Chinese.
| Dimensions | 188 mm × 97 mm × 70 mm |
|---|---|
| Weight | 0.5 kg |
| Power Supply | 12 V DC, 500 mA |
| Maximum Controlled Devices | 255 ball cameras |
| Maximum Communication Distance | 1.2 km |
| Supported Baud Rates | 1200, 2400, 4800, 9600 bps |
It can control up to 255 ball cameras simultaneously.
The RS‑485 link can reach up to 1.2 km.
It requires a 12 V DC supply with a current draw of up to 500 mA.
Supported baud rates are 1200, 2400, 4800 and 9600 bps, set via DIP switches.
