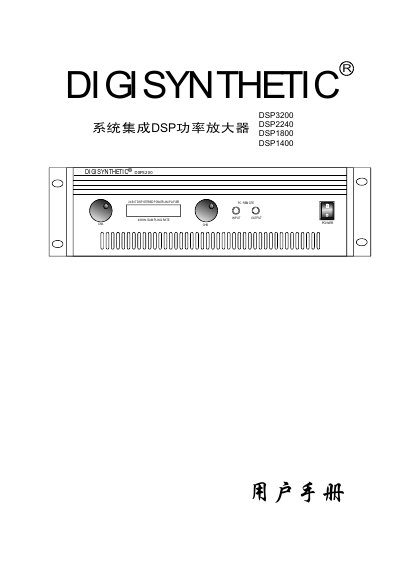

This manual introduces the features and usage of DIGISYNTHETIC R DSP3200, DSP2240, DSP1800, DSP1400 power amplifiers. This product adopts 24bit DSP, 116dB dynamic range, 48kHz sampling rate, has good sound quality, supports multiple control modes, and can be widely used in professional audio systems.
This manual provides essential safety information, functional descriptions, and detailed instructions for installing, connecting, and operating the DIGISYNTHETIC DSP3200, DSP2240, DSP1800, and DSP1400 integrated power amplifiers. It includes guidance on grounding, cable handling, cooling, and proper use in various environments.
The document also describes the control panel layout, front and rear panel connectors, software interface for parameter adjustment, and bridge mode configuration. Technical specifications such as output power, signal‑to‑noise ratio, distortion, and dimensions are listed for each model. This manual is written in Chinese.
| Signal‑to‑Noise Ratio | 90 dB |
|---|---|
| THD+N | 0.08 % @ 1 kHz |
| Frequency Response | 20 Hz – 20 kHz (+0.5 dB) |
| Power Supply | AC 220 V ± 10 % 50‑60 Hz |
| Dimensions (DSP3200) | 483 mm × 132 mm × 495 mm |
Use power cables (speaker cables) with two large‑area conductors; do not use signal cables for speaker connections.
