T80-2 car monitoring management terminal is a car monitoring management terminal with satellite positioning, mobile phone car search, vehicle real-time alarm, anti-theft function, historical driving trajectory playback and report analysis.

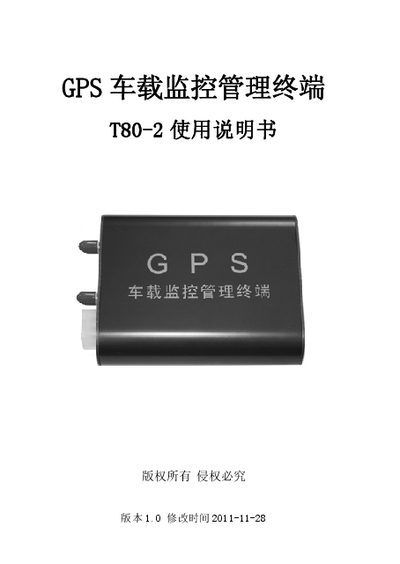

This manual introduces the GPS T80-2 vehicle monitoring terminal, describing its satellite positioning, real‑time alarm, anti‑theft, mileage statistics and map functions. It explains how the device enables remote monitoring of vehicle status, route tracking and report analysis.
The document includes detailed sections on product functions, installation and wiring, technical parameters, fault troubleshooting, and after‑sales service, providing users with step‑by‑step guidance for setup and operation. This manual is written in Chinese.
| Reacquisition time | <1 second |
|---|---|
| Hot start time | <3.5 seconds |
| Cold start time | 42 seconds |
| Speed resolution | 1 m/s |
| Positioning accuracy | 2.5 m CEP |
| Maximum speed limit | 350 km/h |
| Working voltage | DC12V±1V or DC24V±2V |
| Working current (12 V) | <100 mA |
| Standby current (12 V) | <50 mA |
| Operating temperature | -20 °C to 60 °C |
| Dimensions | 97 mm × 70 mm × 24 mm |
Open the device housing, remove the board, pull out the card slot, insert the SIM card into the slot and reinsert the slot.
The terminal can operate on DC12 V ± 1 V or DC24 V ± 2 V.
The device measures 97 mm × 70 mm × 24 mm.
