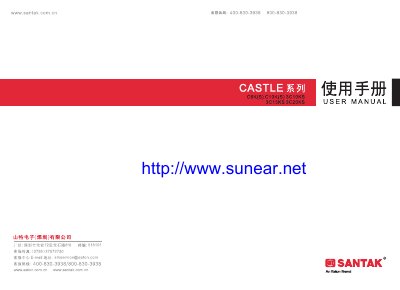

This document is the instruction manual of Santak UPS, which mainly introduces the use methods, safety precautions and maintenance methods of the product.
This manual covers the safe use and installation of Santak's CASTLE series UPS devices, including warnings, environmental requirements, and electrical safety procedures. It also describes the control panel layout, startup/shutdown operations, and troubleshooting of common fault indicators.
Detailed specifications for each model (C6K, C6KS, C10K, C10KS, 3C10KS, 3C15KS, 3C20KS) are provided, along with battery installation, maintenance schedules, and warranty information. This manual is written in Chinese.
| Dimensions (W×D×H) for C6K | 248×500×616 mm |
|---|---|
| Net weight for C6K | 57 kg |
| Apparent power / Active power for C6K | 6 kVA / 4.8 kW |
| Output voltage | 220 V AC ±1 % |
| Battery voltage (all models) | 192 VDC |
| Overload capacity | 105%–125% for 1 min, 125%–150% for 30 s |
If the UPS is not used, the battery should be charged every four to six months (every two months in high‑temperature areas).
Santak provides a three‑year free warranty from the date of purchase.
