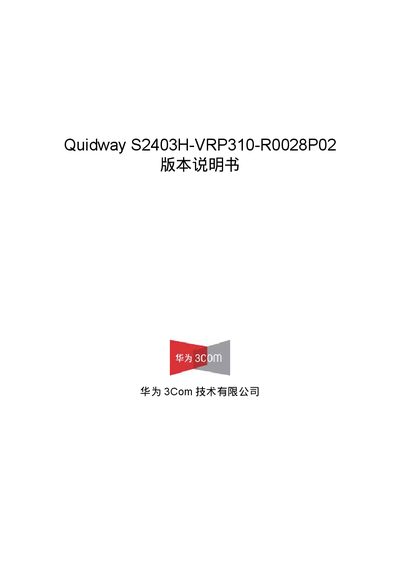

This document is the version manual for Quidway S2403H-VRP310-R0028P02 by Huawei 3Com Technologies Co., Ltd., which describes the hardware features, software features, and version changes of the product.
The manual details the hardware characteristics of the Quidway S2403H switch, including its dimensions, weight, port configuration, power requirements, and environmental limits. It also lists the supported networking features such as VLAN, STP, IGMP‑snooping, and management protocols.
Configuration and firmware upgrade procedures are described, covering boot menu operations, setting TFTP/FTP/Xmodem parameters, and downloading new images to flash. Additional sections cover version history, usage restrictions, and troubleshooting guidance. This manual is written in Chinese.
| Dimensions (L x W x H) | 436mm x 42mm x 240mm |
|---|---|
| Weight (full load) | 4 kg |
| Ethernet ports | 24 × 10/100M ports, 1 × 100Base‑TX uplink, 1 × 100Base‑TX downlink, 1 × 100Base‑FX multimode, 1 × 100Base‑FX single‑mode |
| AC input voltage | 100‑240 V, 50/60 Hz |
| Maximum power consumption (full load) | 130 W |
| Operating temperature | 0 °C ~ 45 °C |
| Operating humidity | 10 % ~ 90 % |
The switch supports Telnet for remote configuration, SNMP for network management, as well as HTTP, FTP, and TFTP for file transfers.
It requires an AC input of 100‑240 V at 50/60 Hz and consumes up to 130 W at full load.
