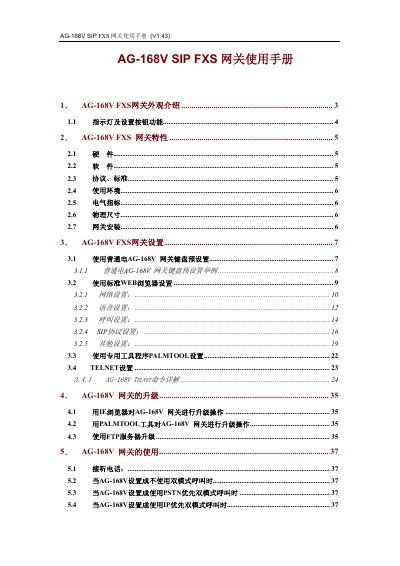

This manual introduces the basic characteristics, appearance, setup methods and usage methods of the AG-168V SIP FXS gateway.
This manual describes the AG-168V SIP FXS Gateway, covering its external appearance, hardware components, software features, supported protocols, and environmental requirements. Detailed instructions are provided for initial installation, network configuration via keypad, web browser, PALMTOOL, and Telnet, as well as firmware upgrade procedures.
Additional sections address factory reset, common troubleshooting questions, and advanced settings such as dialing rules, internal line configuration, and TOS parameters, helping users to fully operate and maintain the device. This manual is written in Chinese.
| Main Chip | PA1688LQ 50MHz |
|---|---|
| SDRAM | 16 MB |
| Flash Memory | 16 MB |
| FXS Interface | 1 RJ11 |
| LINE Interface | 1 RJ11 |
| Ethernet Interface | 10 M Ethernet |
| Power Input | AC 100‑220 V |
| Power Output | 12 V DC 450 mA |
| Operating Voltage Range | 9 V ~ 24 V |
| Dimensions (L×W×H) | 153 mm × 124 mm × 27 mm |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -30 °C to 65 °C |
| Humidity | 10 % to 90 % (non‑condensing) |
Use the PALMTOOL utility as described in Chapter 4 to load the firmware binary file and update the device.
The device is set to DHCP but did not obtain an address, possibly due to a disconnected cable or missing DHCP server; switch to static IP or check the network.
