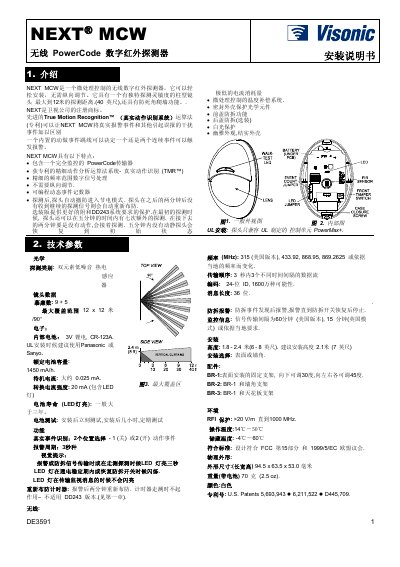

NEXT MCW wireless PowerCode digital infrared detector installation instructions, introducing the features and characteristics of the product, including a microprocessor-controlled wireless digital infrared detector, a unique columnar lens with unique detection sensitivity, a maximum detection distance of 12 meters, and a dead-end climbing wall function. The advanced True Motion Recognition™ (real motion recognition system) algorithm, programmable dynamic event counters, extremely low current consumption, microprocessor-controlled temperature compensation system, sealed housing to protect optical elements, front cover tamper function, rear cover tamper (optional), white light protection, elegant appearance, and sturdy shell.
The DE3591 NEXT MCW is a micro‑processor‑controlled wireless digital infrared detector with a column‑type lens offering up to 12 m detection range and anti‑dead‑spot wall‑climbing capability. It features a PowerCode transmitter, True Motion Recognition™ algorithm, programmable event counters, and an automatic power‑saving mode after detection.
The guide details mounting heights of 1.8‑2.4 m, surface or corner installation options, battery replacement, tamper‑switch reset procedures, and weekly walk‑test instructions. It also lists technical parameters, wireless frequency options, and compliance with FCC and EU regulations. This manual is written in Chinese.
| Maximum detection range | 12 m |
|---|---|
| Battery type | 3 V Li‑ion CR‑123A |
| Battery capacity | 1450 mAh |
| Standby current | ≈ 0.025 mA |
| Operating temperature | 14 °C – 50 °C |
| Storage temperature | -4 °C – -60 °C |
| Dimensions (L×W×H) | 94.5 × 63.5 × 53.0 mm |
| Weight (with battery) | 70 g |
| Wireless frequencies | 315 MHz, 433.92 MHz, 868.95 MHz, 869.2625 MHz |
With the battery installed, press both tamper switches simultaneously; the front LED will flash for about two minutes until the detector stabilizes.
Install the detector at a height of 1.8 – 2.4 m (6 – 8 ft), with a typical recommendation of 2.1 m (7 ft).
The user should perform a walk‑test at least once a week to ensure proper function.
