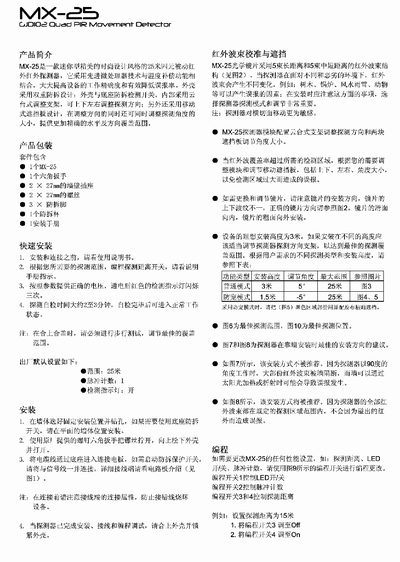

This manual introduces the MX-25 infrared detector, describing its dual‑mode operation, detection range (10‑25 m), and adjustable angle (up to 90°). It also lists the package contents, including the detector unit, mounting brackets, and accessories.
Detailed sections cover quick installation steps, mounting on a desktop bracket, wiring connections, calibration procedures, and parameter settings such as LED indicators, detection distance, and power supply requirements. The document ends with a specification table summarizing key performance data. This manual is written in Japanese.
| Detection distance | 10‑25 m (adjustable) |
|---|---|
| Maximum detection angle | 90° |
| Detection area | 25 m × 25 m |
| Installation height (optimal) | 3 m |
| Power supply | 24 VAC/DC @50 mA |
| Operating temperature | -20 °C to +55 °C |
| Ingress protection | IP5 |
| Dimensions | 84 mm × 106 mm × 72 mm |
The MX-25 can detect objects at distances of 10 m, 15 m, 20 m or 25 m, selectable by the user.
It operates from a 24 VAC or DC supply with a current draw of about 50 mA.
The recommended installation height is 3 meters for best performance.
The detector provides a maximum detection angle of 90 degrees.
