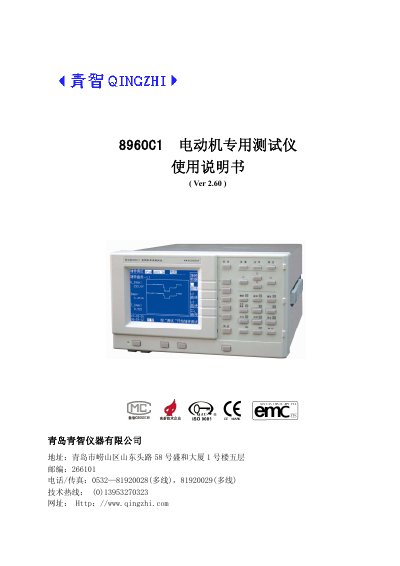

This document introduces the user manual of the 8960C1 motor dedicated test instrument produced by Qingdao Qingzhi Instrument Co., Ltd. It includes various aspects such as conventional operations, input connections, steady-state testing, waveform display, harmonic display, imbalance display, voltage storage, start-up testing, locked-rotor testing, waveform recording, parameter settings, data management, daily maintenance and troubleshooting.
This manual introduces the Qingzhi 8960C1 motor testing instrument, covering safety notices, warranty information, and the contents of the test kit. It explains the instrument’s hardware features, measurement capabilities, and the required connection methods for power, voltage, current and communication interfaces.
Detailed chapters guide users through basic operation, input wiring, steady‑state testing, waveform and harmonic displays, start‑up and stall tests, recording modes, parameter configuration, data management, routine maintenance, troubleshooting and the full technical specifications of the device. This manual is written in Chinese.
