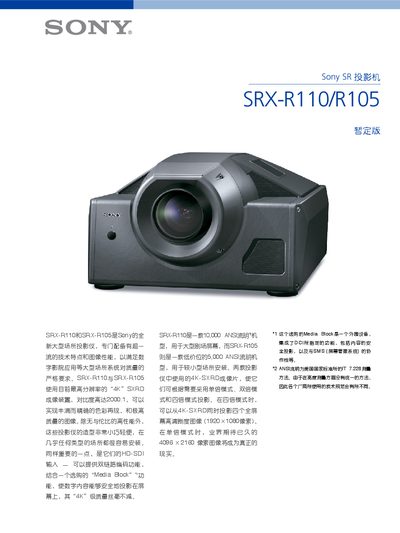

The Sony SR Projectors SRX-R110/R105 are Sony's new large venue projectors, specifically equipped with state-of-the-art features and image performance to meet the stringent quality requirements of large venue systems such as digital cinema applications.
This manual covers the Sony SRX-R110 and SRX-R105 large‑venue projectors, describing their high‑performance SXRD 4K imaging, contrast ratio of 2000:1, and flexible projection modes (single, double, and quadruple). It also explains the integrated Media Block that enables secure digital content projection via HD‑SDI.
Technical details such as brightness (10 000 ANSI lm for SRX‑R110, 5 000 ANSI lm for SRX‑R105), power consumption, input voltage ranges, dimensions, weight, and supported resolutions are provided, along with safety certifications and installation recommendations. This manual is written in Japanese.
| Brightness (ANSI lumens) SRX-R110 | 10000 |
|---|---|
| Brightness (ANSI lumens) SRX-R105 | 5000 |
| Resolution (4K mode) | 4096 x 2160 |
| Resolution (HD mode) | 1920 x 1080 |
| Power consumption SRX-R110 | 1.5 kW to 4.5 kW |
| Power consumption SRX-R105 | 1.0 kW to 2.5 kW |
| Input voltage SRX-R110 | AC 200‑240V, 50/60 Hz |
| Input voltage SRX-R105 | AC 100‑240V, 50/60 Hz |
| Dimensions (W×H×D) | 740 x 480 x 900 mm |
| Weight | 85 kg |
The SRX‑R110 provides a brightness of 10 000 ANSI lumens.
They support up to 4096 × 2160 (4K) and 1920 × 1080 (HD) resolutions.
The SRX‑R105 operates on AC 100‑240 V, 50/60 Hz and consumes between 1.0 kW and 2.5 kW.
