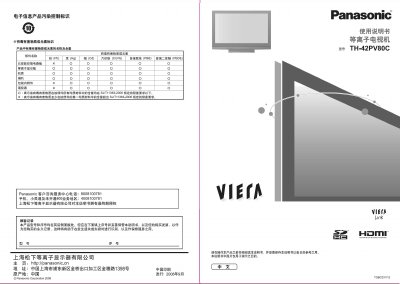

This manual covers safety precautions, proper installation, and basic connections for the TH-42PV80C plasma television. It explains how to set up the antenna, connect audio/video sources, and configure the remote control.
Additional sections describe menu navigation, picture and sound adjustments, and a troubleshooting guide with common issues such as no picture or audio problems. Technical specifications and environmental information are listed at the end of the document. This manual is written in Chinese.
| Power consumption | 375 W |
|---|---|
| Standby power | 0.7 W |
| Screen size (diagonal) | 106 cm |
| Resolution | 1366 x 768 |
| Speakers | 2 x 160 mm × 42 mm, 8 Ω |
| Audio output | 16 W (BW+8 W) 7 % THD |
| Headphone jack | 1 × 3.5 mm |
| Horizontal scan frequency | 31–69 kHz |
| Vertical scan frequency | 59–86 Hz |
| Supported broadcast standards | PAL B,G,H, NTSC, SECAM |
| Dimensions (W×H×D) with base | 1020 mm × 679 mm × 95 mm |
| Weight (with base) | 29.0 kg |
Check the antenna position, direction, and connections, and verify the input source settings.
Select the ‘Factory Reset’ option in the menu to restore all settings to their original values.
