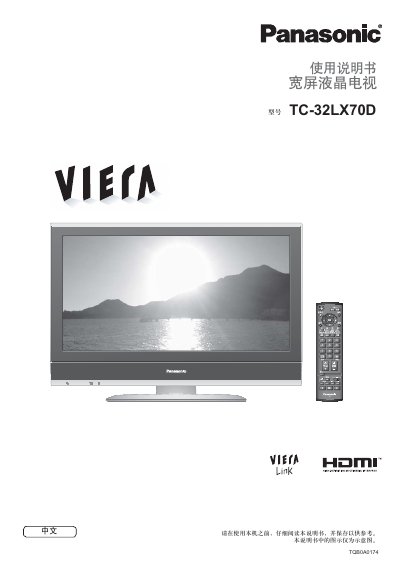

This document is an instruction manual for the TC-32LX70D TV and DVD player, describing its features and functions.
This manual covers safety precautions, quick start procedures, and basic connections for the Panasonic TC-32LX70D LCD TV. It explains how to install the TV, connect antennas, DVD/VCR units, and external devices, and provides guidance on remote‑control functions and menu settings.
Additional sections describe recommended accessories, wall‑mount installation, routine cleaning, and detailed technical specifications such as power consumption, screen dimensions, resolution, and audio outputs. Warranty and regulatory information are also included. This manual is written in Chinese.
| Average Power Consumption | 134 W |
|---|---|
| Standby Power | 0.4 W |
| Aspect Ratio | 16:9 |
| Screen Diagonal | 80 cm |
| Resolution | 1,049,088 pixels (1366 × 768) |
| Speakers | 2 × 120 mm × 60 mm |
| Audio Output Power | 14 W (7 W + 7 W) |
| HDMI Inputs | HDMI 1/2 (Type‑A) |
| Dimensions (W × H × D) | 791 mm × 615 mm × 248 mm |
| Net Weight | 18 kg |
