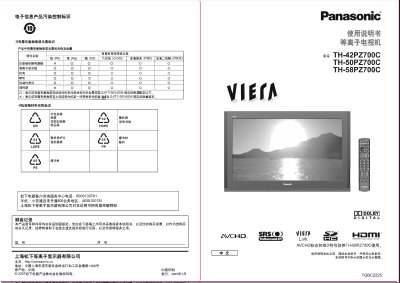

This manual begins with safety precautions and installation guidance, covering proper handling of the power cord, grounding, and recommended wall‑mount installation. It also lists the required accessories and how to insert batteries into the remote control.
The second part explains basic connections, menu navigation, audio‑video settings, SD‑card playback, and other functions such as picture‑in‑picture and multi‑screen viewing. Technical specifications and a FAQ section are provided at the end. This manual is written in Chinese.
| Power Consumption (Typical) | 527 W / 632 W / 672 W |
|---|---|
| Standby Power | 0.5 W / 0.5 W / 0.4 W |
| Screen Resolution | 1920 × 1080 (2,073,600 pixels) |
| Aspect Ratio | 16:9 |
| Speaker Configuration | 2 × 80 mm woofers, 2 × 23 mm × 100 mm tweeters |
| Audio Output Power | 125 W (7 % THD) |
| Net Weight | 39 kg / 48 kg / 64 kg |
The wall‑mount bracket must be installed by an authorized dealer or service contractor to ensure safe mounting.
The standby power consumption is 0.5 W for the 42‑inch and 50‑inch models and 0.4 W for the 58‑inch model.
