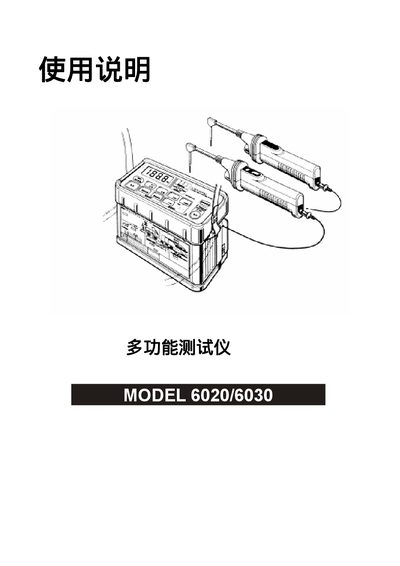

This document introduces the safety warnings, features, specifications, and instructions for the multi-function tester MODEL 6020/6030. This tester has five-in-one functions including voltage measurement, insulation resistance measurement, ground resistance measurement, phase detection, and phase sequence detection. It is suitable for measuring and maintaining distribution systems or electrical equipment with a rated voltage of 600V AC/DC. The tester features waterproof design, easy-to-read wide-screen display, automatic shutdown, and backlight function.
This manual provides the necessary information to safely install, operate, and maintain the 6020/6030 multi‑function tester. It includes safety warnings, connection diagrams, step‑by‑step operating procedures, and troubleshooting tips.
Additional sections describe the technical specifications, calibration instructions, and recommended accessories for the tester, helping users achieve accurate measurements across a range of voltages and currents. This manual is written in Chinese.
| Input Voltage | 100‑600 V AC, 50/60 Hz |
|---|---|
| Measurement Range | 0‑199.9 V / 100‑600 V |
| Operating Temperature | -10 °C to 50 °C |
The manual is for the 6020 and 6030 models of the multi‑function tester.
The tester is rated for an input voltage of 100 V to 600 V AC at 50/60 Hz.
It can operate from –10 °C up to 50 °C.
