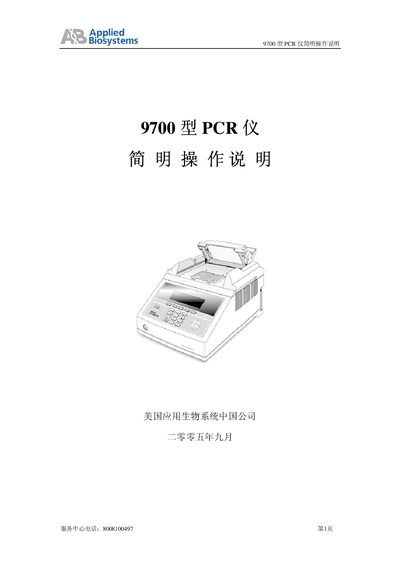

This document introduces the basic performance characteristics, installation and operating conditions, sample base installation, control panel operation, main menu and new user name operation methods of 9700 PCR instrument.
The guide provides a concise overview of the 9700 PCR instrument, highlighting its blue LCD display, 96‑well sample block, and fast temperature ramp rate of up to 3.5 °C/sec. It outlines the environmental requirements (5‑40 °C, 20‑80 % humidity) and power specifications (220 V ± 5 V with grounding).
Step‑by‑step instructions cover sample block installation, navigation of the control panel and main menu, creating and editing method files, running PCR programs, and using built‑in utilities such as self‑diagnostics, Tm calculation, and instrument configuration. The guide also explains how to add user names, set passwords, and view run history. This manual is written in Chinese.
| Display | Blue LCD large screen |
|---|---|
| Sample block heating/cooling rate | 3.5 °C/sec |
| Operating temperature range | 5 °C – 40 °C (optimal 15 °C – 30 °C) |
| Power supply | 220 V ± 5 V with grounding |
| Ventilation clearance | 10‑15 cm from walls |
| Temperature input range | 4 °C – 99.9 °C |
| Time input range | 00:00 – 98.59 |
The instrument can operate from 5 °C to 40 °C, with the optimal range being 15 °C to 30 °C.
The sample block can change temperature at up to 3.5 °C per second.
