The YVF2 series variable-frequency speed three-phase asynchronous motor has the advantages of low noise, low vibration, wide speed range, reliable operation, and convenient maintenance. It can be used with domestic and foreign variable-frequency devices to save energy and realize automatic control.
The YVF2 series variable‑frequency three‑phase asynchronous motor is designed for low noise, low vibration and wide speed range operation. It can be paired with domestic and foreign frequency converters to achieve energy‑saving control and automatic regulation.

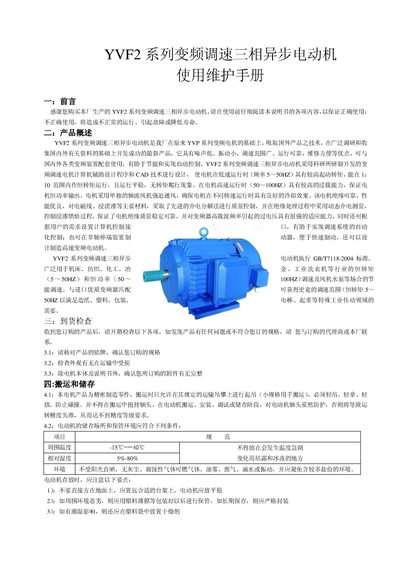

This manual provides product overview, arrival inspection, handling, storage, operating environment, technical parameters, installation procedures, electrical and mechanical mounting, routine maintenance, fault diagnosis, warranty information and accessory guidance. This manual is written in Chinese.
| Rated Voltage | 380 V (220 V optional) |
|---|---|
| Frequency Range | 5 Hz – 100 Hz (or 6 Hz – 120 Hz) |
| Starting Torque Ratio | Up to 1.25 × rated torque at low speed |
| Insulation Resistance (minimum) | > 2 MΩ |
| Phase Resistance Imbalance | < 5 % |
| Operating Temperature | -15 °C – 40 °C |
| Relative Humidity (storage) | 5 % – 80 % |
| Warranty Period | 1 year (max 24 months from production date) |
The insulation resistance must be greater than 2 MΩ.
The phase‑resistance imbalance rate must be less than 5 %.
Store the motor at temperatures between –15 °C and 40 °C.
The warranty is one year, but not longer than 24 months from the date on the nameplate.
