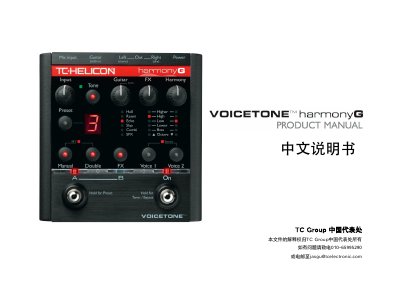

This is the user manual of TC Helicon Harmony-G. Harmony-G is an effects processor designed for singers, which can add 1 or 2 harmonies to vocals and guitar, and provide reverb and delay effects.
This manual guides users through quick‑start setup, front‑panel controls, and rear‑panel connections for the Harmony‑G vocal harmonizer. It explains how to connect guitars, microphones, and external mixers, and describes the Double, Voice1/Voice2, and FX functions.
Technical details such as input/output impedances, sensitivity ranges, sample rate, and safety compliance are listed in the specifications section, along with warranty and contact information for TC Group in China. This manual is written in Chinese.
| Mic input sensitivity | -44dBu to +12dBu |
|---|---|
| Guitar input impedance | 1 MΩ |
| Main output impedance | 400 Ω |
| Sample rate | 48 kHz |
| ADC resolution | 24‑bit |
| Operating temperature | -22 °C to 167 °C |
| Dimensions | 130 mm × 132 mm × 41 mm |
| Weight | 0.72 kg |
Select the Left/Mono output for a single‑channel signal or use the Right output for stereo operation.
The Double function adds a thicker vocal sound by layering a second voice.
