Acer color liquid crystal display user manual, introduces the front and rear views of the display, installation, adjustment of the display, control panel, quick key mode, etc.
This manual covers safety precautions such as disconnecting power before cleaning, using a soft cloth, and avoiding liquid cleaners. It also explains proper installation of the monitor, including hardware connections for video, audio, and power, and provides detailed software driver installation instructions for Windows systems.
Technical information includes the monitor's operating voltage (100‑240 V, 50‑60 Hz), contrast ratio (100:1), viewing angles (horizontal 60°, vertical 45°), response time (70 ms), brightness (80‑100 cd/m²), native resolution (1024×768) and pixel count, as well as error rate specifications. The appendix offers an overview of LCD technology and comparisons with CRT displays. This manual is written in Chinese.
| Operating Voltage | 100‑240 V |
|---|---|
| Operating Frequency | 50‑60 Hz |
| Contrast Ratio | 100:1 |
| Brightness | 80‑100 cd/m² |
| Resolution | 1024×768 (786 432 pixels) |
| Pixel Error Rate | 0.0038 % (≈ 千分之 0.0038) |

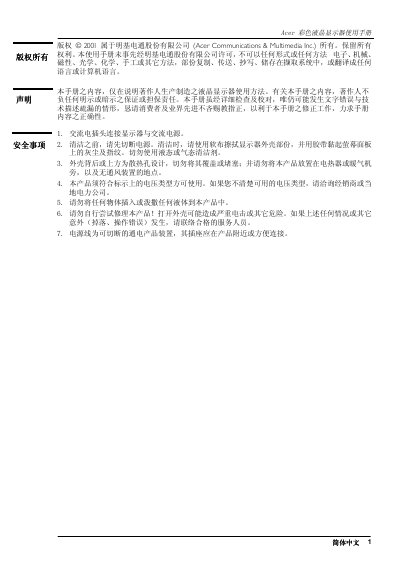

First disconnect the power, then use a soft cloth to wipe the monitor’s exterior and gently remove dust and fingerprints with tape; do not use liquid or aerosol cleaners.
The monitor can be used with an input voltage between 100 V and 240 V, at a frequency of 50 Hz to 60 Hz.
The specified contrast ratio for the monitor is 100:1.
