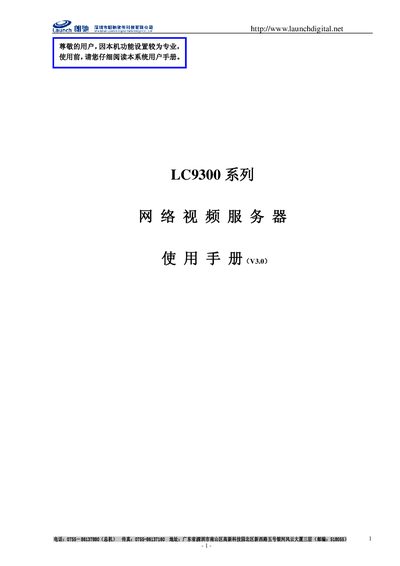

LC9300 series network video server user manual, introduces the product features and characteristics, installation and use methods, and common problems solving methods.
The LC9300 series network video server from Launch Digital provides high‑performance video compression, PTZ control, alarm I/O, and two‑way audio. It supports multiple resolutions, H.264/MJPEG encoding, and optional 3G/Wi‑Fi connectivity for remote monitoring.
The manual details safe installation, network setup, client software usage, and troubleshooting. It includes default network parameters, factory‑reset procedures, and explanations of technical terms such as dual‑stream and transparent channels. This manual is written in Chinese.
| Video compression standard | H.264/MJPEG |
|---|---|
| Audio compression standard | G.711, G.722 |
| Supported image sizes | 704×576, 704×288, 352×288, 176×144 |
| Power supply | DC12V/1A |
| Operating temperature | -10℃ to 70℃ |
| Operating humidity | ≤85% RH |
Power off the unit, press and hold the reset button, then power it on. When the status light stays on and the relay clicks, release the button; the device will reset to factory defaults.
The default IP address is 192.168.1.19 with subnet mask 255.255.255.0.
Enter the server’s IP address (e.g., http://192.168.1.19) in the IE address bar, lower the ActiveX security level if prompted, and install the required control.
