GQ1016 Ethernet converter device is used to transparently transmit Ethernet data on 1 to 16 E1 lines, with a maximum transmission speed of 31.68 Mb/s. This device adopts a modular structure, and different types of LAN interface cards, E1 interface cards and power cards can be configured through the main board to meet the requirements of different application environments.
The GQ1016 is an Ethernet‑to‑E1 interface converter that transparently transports Ethernet data over 1‑16 E1 lines, supporting up to 31.68 Mb/s forwarding rate. It uses a modular design with configurable LAN, E1, and power cards, providing comprehensive alarm and status indicators, error‑rate statistics, and traffic monitoring.

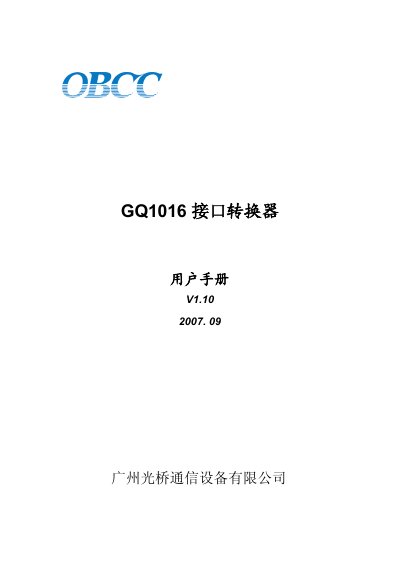

The manual includes system overview, features, functional block diagram, application examples, front‑ and rear‑panel descriptions, network management via CLI or SNMP, installation steps, and detailed technical specifications such as interface types, power options, dimensions, and environmental requirements. This manual is written in Chinese.
| Ethernet optical interface wavelength | 1310 nm |
|---|---|
| Ethernet speed | 125 Mb/s |
| Power consumption | 8 W ±10% |
| Dimensions (W×H×D) | 434 mm × 444 mm × 155 mm |
| Weight | 2.0 kg |
It can transparently transport Ethernet data over 1 to 16 E1 lines.
The Ethernet interface supports a maximum speed of 125 Mb/s.
The device can be powered by 48 V DC, 220 V AC, or a dual 48 V + 220 V supply.
