DS-101 Disk Station Quick Installation Manual

This manual introduces the installation method of DS-101 Disk Station, including hard disk installation, power connection, network connection, etc.

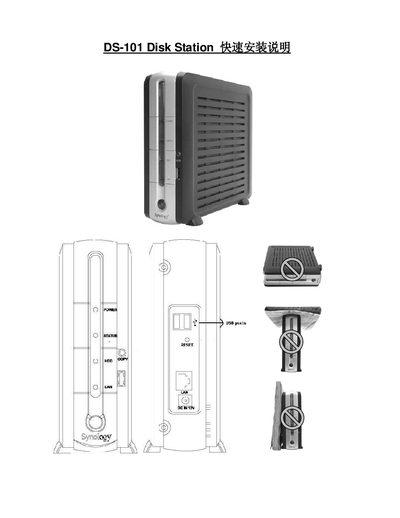

DS-101 Disk Station Quick Installation Manual - cover page
Brand
DS-101
Category
Hard disk
Document type
Quick Start Guide
Language
Chinese
Pages
26
File format
PDF
File size
2.2 MB
Published
09 March, 2012
Updated
30 September, 2023
MD5 checksum
CB9E7139FE905125C7768B47ED1C9CD6
PDF
DS-101 Disk Station Quick Installation Manual PDF

About this manual

The guide provides step‑by‑step instructions for installing the DS-101 Disk Station, attaching the IDE hard drive, and securing the mounting brackets. It also explains how to connect USB printers and disks, and how to perform the initial format and reset procedures.

Additional sections cover supported hardware (hard‑drive models, USB printers, and cameras), limitations of USB hub usage, and how to access the web‑based management interface using Internet Explorer on Windows or Mac. This manual is written in Chinese.

What's inside

  • Attention
  • Installation Steps
  • Supported Hard Drives
  • Supported USB Printers
  • USB Copy Function
  • Network Management
  • Reset Procedure
  • Limitations

Specifications

Maximum USB disks3 (no USB hub)
Maximum USB printers1 (no USB hub)
USB COPY supported sizeUp to 4 GB FAT‑formatted USB disk
Default IP address192.168.100.10

Frequently asked questions

How many USB disks can the DS-101 support?

The DS-101 can support up to three USB disks, but it does not work through a USB hub.

Can the DS-101 connect more than one USB printer?

No, the DS-101 supports only one USB printer and does not work through a USB hub.

What is the maximum size for a USB disk used with the USB COPY function?

USB COPY works with USB disks up to 4 GB that are formatted with FAT.

What is the default IP address of the DS-101 Disk Station?

The default IP address is 192.168.100.10.
