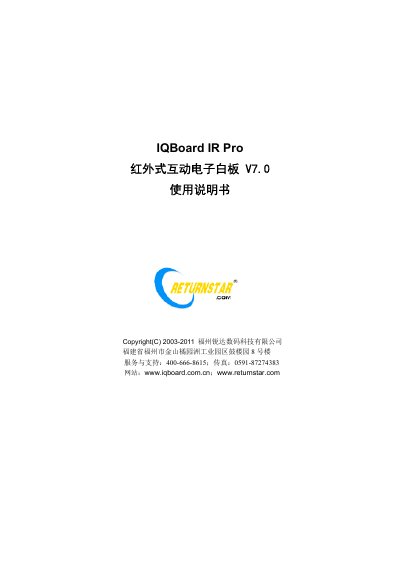

IQBoard IR Pro infrared interactive electronic whiteboard user manual, introduces the characteristics and features of the product, specifications, hardware installation, connection with computer and projector, installation of driver and positioning program, hardware settings, operation instructions, common problems and maintenance precautions
This manual provides detailed instructions for installing, configuring, and using the IQBoard IR Pro infrared interactive whiteboard. It includes safety notices, hardware installation steps, connection methods, and software setup for Windows operating systems.
The guide also covers routine maintenance, cleaning procedures, environmental limits, and troubleshooting tips to ensure reliable performance in classroom or conference environments. This manual is written in Chinese.
| Resolution | 9600 × 9600 |
|---|---|
| Maximum DPI | 600 dpi |
| Signal latency | 8 ms |
| Supported point precision | 4, 9 and 20 points |
| Mounting height range | 1.88 m – 2.12 m |
| Storage temperature range | -40 °C – 60 °C |
| Operating temperature range | 0 °C – 40 °C |
| USB cable length (standard) | 10 m |
| Supported OS | Windows XP/2003/Vista/7 |
| Minimum RAM | 64 MB (recommended 128 MB) |
A standard USB cable can reach up to 10 meters; with a USB extender it can be extended to 20 meters or 25 meters using a 2.4 GHz wireless module.
Model numbers such as RP060, RPO80, RPO8S, RP0100, and RP105 indicate the supported board sizes; an ‘N’ suffix means no tilt, while a ‘W’ suffix indicates support for water‑based writing.
