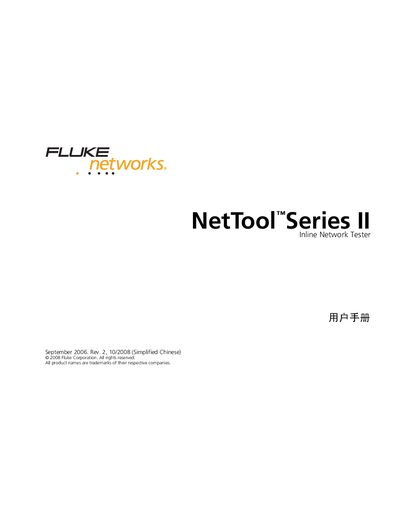

NetTool ™Series II Inline Network Tester User Manual, includes the product features, warranty terms and other information
This manual covers the NetTool Series II Inline Network Tester, describing its features, power options, and user interface. It explains how to power the device with a rechargeable NiMH AA battery, an AC adapter, or PoE, and details the LED indicators for link, conflict, and utilization.
The guide walks users through configuration steps such as assigning an IP address, running cable and PoE tests, using WireView and audio diagnostics, and generating reports. Warranty information, software updates, and contact details for Fluke Networks support are also included. This manual is written in Chinese.
| Battery type | NiMH AA rechargeable battery |
|---|---|
| Power sources | AC adapter, PoE, rechargeable battery |
| LED indicator – link speed | 10/100/1000 link LED |
| Cable length measurement | Measures cable length, open/short faults |
| PoE testing capability | Automatic PoE device test results |
Use the ‘Assign IP address’ function in the menu to manually set the IP configuration.
The tester can be powered by a rechargeable NiMH AA battery, an AC adapter, or Power over Ethernet (PoE).
