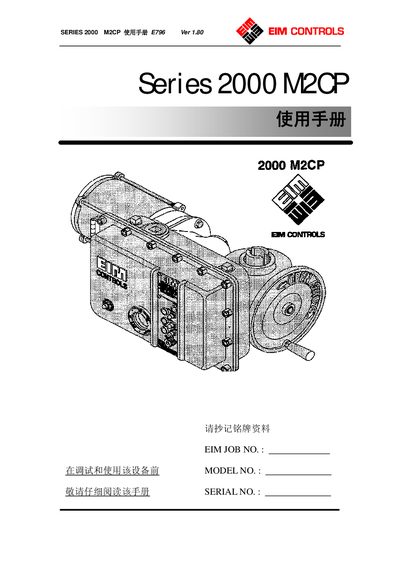

This document is the SERIES 2000 M2CP user manual, which mainly introduces the product's precautions, lubrication, general maintenance, pressure relief valve, storage and storage, M2CP control component electrical wiring, electric actuator and valve (gate) assembly, travel switch (LSC, LSO) setting and adjustment, torque switch (TSC, TSO) setting and adjustment, on-site mechanical position indicator (MDPI) calibration, M2CP control component electrical circuit diagram legend, troubleshooting, Chinese and English correspondence, Futronic Ⅱ 83957 control module settings, Futronic Ⅲ 84239 - control module settings, Futronic Ⅳ 84247 - control module settings, position feedback module 84064-1 settings and other contents.
This manual covers the safe operation of the EIM 2000 M2CP electric actuator, including precautions, lubrication, regular maintenance, and storage requirements. Detailed instructions are provided for assembling the actuator with valve gates, setting travel switches, and configuring the position‑feedback module.
Electrical wiring procedures, pressure‑release valve setup, and step‑by‑step troubleshooting are also included, ensuring reliable performance in industrial applications. This manual is written in Chinese.
| Feedback output impedance | 750 Ω |
|---|
The actuator should be inspected at least once a year.
Remove the protective covers from the power module (PWR) and the terminal board module (TBM) before making any connections.
