This 42-inch 1080p Full HD TV with Pixel Plus HD Engine and hidden speakers delivers a superior audio-visual experience.

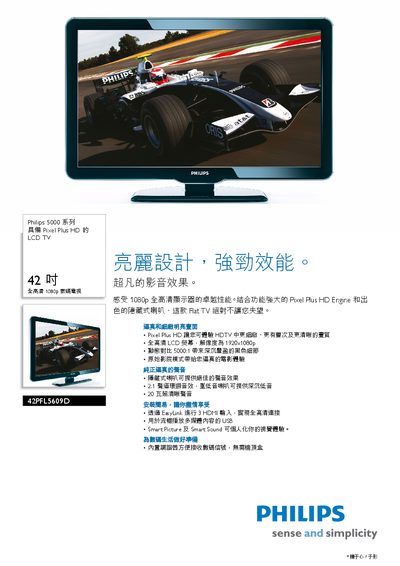

This manual describes the key features of the Philips 42PFL5609D 42‑inch LCD TV, including Pixel Plus HD picture processing, 1080p full‑HD resolution, 500 cd/m² brightness, 5000:1 dynamic contrast, and a 2.1 channel surround sound system with hidden speakers. It also explains the EasyLink HDMI‑CEC functionality, Smart Picture and Smart Sound modes, and built‑in digital tuner for cable and terrestrial reception.
The specifications section lists the screen size, resolution, response time, audio output power, power consumption, dimensions, weight, and available connectors such as three HDMI ports, USB, AV, S‑Video, and component inputs. Accessories like the stand, remote control, power cord, quick‑start guide, and warranty information are also covered. This manual is written in Chinese.
| Screen size | 42 inches / 107 cm |
|---|---|
| Resolution | 1920 × 1080 p |
| Brightness | 500 cd/m² |
| Dynamic contrast ratio | 5000:1 |
| Response time | 3 ms |
| Audio output power (RMS) | 20 W |
| Power consumption | 220 W |
| Weight (including packaging) | 26.5 kg |
| Dimensions (W × H × D) | 1033 mm × 664 mm × 83 mm |
The TV has a panel resolution of 1920 × 1080 p.
The TV offers three HDMI inputs – two on the back and one on the side.
The TV consumes up to 220 W of power.
