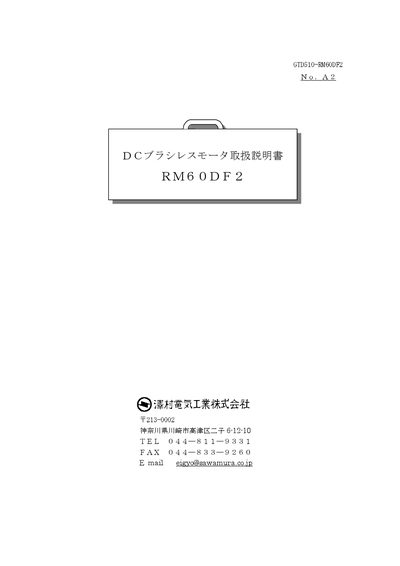

This document is the user manual for the GTD510-RM60DF2 DC brushless motor. The motor features a DC24V single power supply and a rated output of 60W. It is a small-sized high-torque motor using high-performance magnets. The speed can be set using an external variable resistor or command voltage, and it has a forward/reverse switching function. It utilizes feedback signals from a Hall IC for speed control, resulting in minimal speed fluctuations during load changes and high torque at low speeds. It outputs a 24-pulse signal proportional to the rotation speed, and has a built-in current limiting circuit. It is easy to install and compatible with the DC motor SS40 series.
The RM60DF2 is a compact 60 W brushless DC motor with an integrated driver, designed for simple speed control similar to traditional DC permanent‑magnet motors. It operates from a single DC24 V supply and includes built‑in over‑current and temperature protection, as well as a cooling fan that runs continuously.
The manual provides safety precautions, motor and driver specifications, circuit diagrams, connection instructions, usage examples (start/stop, direction and speed switching), optional accessories such as a digital rotation display, and a troubleshooting guide for common fault conditions. This manual is written in Japanese.
