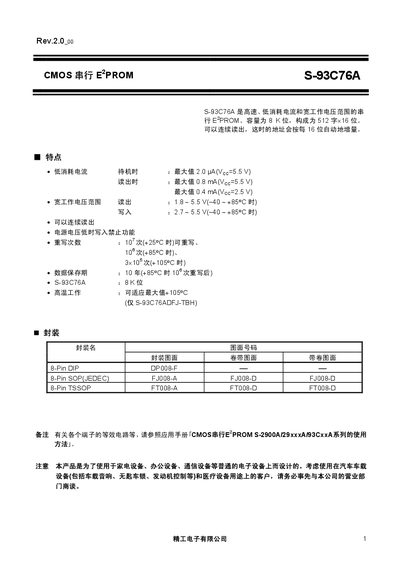

S-93C76A is a high-speed, low-power consumption and wide operating voltage range serial E2PROM. The capacity is 8K bits, which is composed of 512 words x 16 bits. It can be read continuously, and the address will be automatically incremented by 16 bits.
This manual describes the S‑93C76A CMOS serial EEPROM, an 8‑Kbit device (512 × 16 bits) with low power consumption and a wide operating temperature range. It includes detailed electrical characteristics, pin‑out diagrams, and supported package types.
The document also explains the command set for reading, writing, erasing, and protecting data, along with timing requirements and recommended usage conditions for reliable operation in automotive, industrial, and medical applications. This manual is written in Chinese.
| Capacity | 8 Kbits (512 × 16 bits) |
|---|---|
| Standby current (max) | 2.0 µA at VCC = 5.5 V |
| Write current (max) | 0.8 mA at VCC = 5.5 V |
| Operating temperature range | -40 °C to +105 °C |
The device supports up to 10⁷ cycles at 25 °C, 10⁶ cycles at 85 °C, and 3 × 10⁵ cycles at 105 °C.
Data is retained for 10 years at 85 °C.
