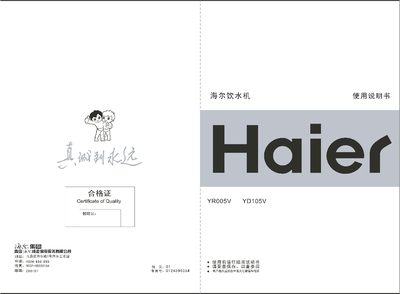

This manual explains how to install and use the Haier YR005V and YD105V drinking fountains. It covers safety precautions, power requirements, and proper handling of hot and cold water functions.
Additional sections describe regular cleaning procedures, environmental disposal, warranty information, and a list of Haier service centers across China. Technical specifications and common fault troubleshooting are also included. This manual is written in Chinese.
| Rated voltage / frequency | 220V / 50Hz |
|---|---|
| Rated total power | 500W (YR005V) / 575W (YD105V) |
| Rated heating power | 500W (YR005V) / 575W (YD105V) |
| Rated cooling power | 75W |
| Heating water capacity | 5 L/h |
| Cooling water capacity | 0.75 L/h |
| Operating temperature range | 10 °C – 38 °C |
| Operating humidity range | 90 % – 90 % |
| Protection type | Class I |
The drinking fountain can be used in ambient temperatures from 10 °C to 38 °C.
Check whether the heating element is damaged, verify the power connection, and ensure the hot water indicator is on. If the problem persists, contact Haier service with the warranty certificate.
