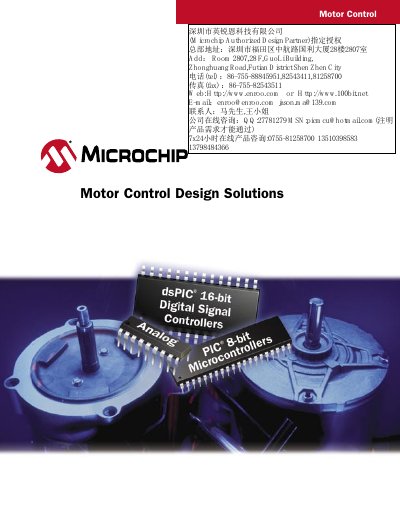

This document introduces Motor Control Design Solutions from Shenzhen Enroon Technology Co., Ltd., including features and characteristics such as Motor Sensors, PIC® 8-bit MCU or dsPIC® 16-bit DSC, MOSFET or IGBT Driver.
The document presents Microchip's portfolio for stepper, brushed DC, AC induction, variable‑speed brushless DC, and switched‑reluctance motor applications. It lists recommended microcontrollers, DSCs, MOSFET/IGBT drivers, sensors, and development kits, helping designers create high‑performance motor control systems quickly and cost‑effectively.
Additional sections describe the Motor Control Graphical User Interface (MC‑GUI) for configuring motor parameters, the PICDEM MC Development Board and dsPIC30F Motor Control Development System for prototyping, and a range of peripheral devices such as MOSFET drivers, fan managers, and power modules. Links to the Motor Control Design Center and other technical resources are provided for deeper reference. This manual is written in Chinese.
| TC1410/11/12/13 MOSFET Driver Peak Output Current | 0.5 A |
|---|---|
| TC4421/22 MOSFET Driver Peak Output Current | 9 A |
| TC4423/24/25 MOSFET Driver Peak Output Current | 3 A |
| TC4426A/27A/28A MOSFET Driver Peak Output Current | 1.5 A |
Visit the Motor Control Design Center at www.microchip.com/motor for design flow charts, application tables, and technical documentation.
The free Windows‑based MC‑GUI graphical user interface lets users set speed, direction, current, temperature, fault status, and other system parameters.
